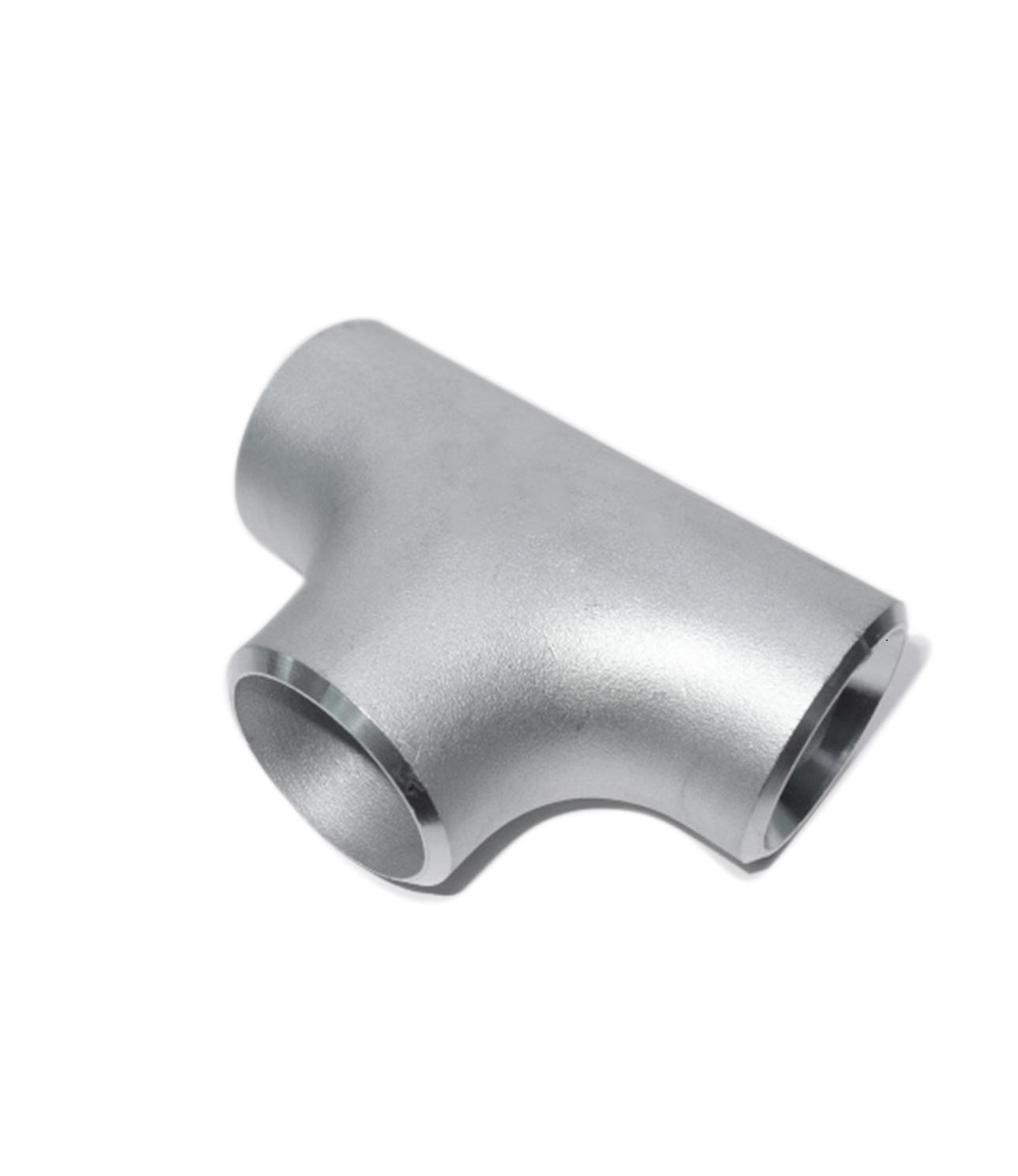

Fitwel India is one of the prominent manufacturer, stockist, supplier, and exporter of Stainless Steel buttweld straight tee. It can withstand higher pressure than other types. The size of the butt weld tee should be specified in pipe NPS (DN) and thickness in the schedule, where the socket weld tee or thread tee thickness should be specified in the pressure level. SS Buttweld straight tee is divided into seamless cold-drawn tee and seam welding tee in the production process.
Carbon Steel, Alloy Steel ASME B16.25, ANSI B19.28, MSS-SP-43 Pipe Equal Tee, Pipe Tee Manufacturer & Supplier in india.
Standard - ANSI/ASME :ASTM A403 / ASME SA403, ANSI B16.9, ASME B16.25, ASME B16.28, MSS SP-43.
DIN : DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
EN : EN10253-1, EN10253-2
Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Type : Seamless / ERW / Welded / Fabricated
Seamless Pipe Tee Size: 1/2"~24"
ERW / Welded / Fabricated Pipe Tee Size: 1/2" (15 NB) to 48" (1200NB)
Form: Pipe Tee, Equal Tee, Fitting Tee, Butt weld Tee
Stainless Steel Equal Tee : ASTM A403 WP316/316L, ASTM A403 WP304/304L, ASTM A182 F316L, 304L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
Carbon Steel Equal Tee : ASTM A234, ASME SA234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
Alloy Steel Equal Tee : ASTM A234, ASME SA234 WP1 / WP5 / WP9 / WP11 / WP22 / WP91
Duplex Steel Equal Tee : ASTM A815, ASME SA815 UNS No S31803, S32205
Super Duplex Equal Tee : ASTM A815, ASME SA815 UNS No S32750, S32950
Nickel Alloy Equal Tee : ASTM B336, ASME SB336, Nickel 200 (UNS No. No2200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II)
Low Temperature Carbon Steel Equal Tee : ASTM A420 WPL3, A420 WPL6
| Nominal Pipe Size | Outside diameter at bevel |
Center-to-End | |
|---|---|---|---|
| Run (C) | Outlet(M) | ||
| 1/2" | 21.3 | 25 | 25 |
| 3/4" | 26.7 | 29 | 29 |
| 1" | 33.4 | 38 | 38 |
| 1 1/4" | 42.2 | 48 | 48 |
| 1 1/2" | 48.3 | 57 | 57 |
| 2" | 60.3 | 64 | 64 |
| 2 1/2" | 73.0 | 76 | 76 |
| 3" | 88.9 | 86 | 86 |
| 3 1/2" | 101.6 | 95 | 95 |
| 4" | 114.3 | 105 | 105 |
| 5" | 141.3 | 124 | 124 |
| 6" | 168.3 | 143 | 143 |
| 8" | 219.1 | 178 | 178 |
| 10" | 273.0 | 216 | 216 |
| 12" | 323.8 | 254 | 254 |
| 14" | 355.6 | 279 | 279 |
| 16" | 406.4 | 305 | 305 |
| 18" | 457.0 | 343 | 343 |
| 20" | 508.0 | 381 | 381 |
| 22" | 559.0 | 419 | 419 |
| 24" | 610.0 | 432 | 432 |
