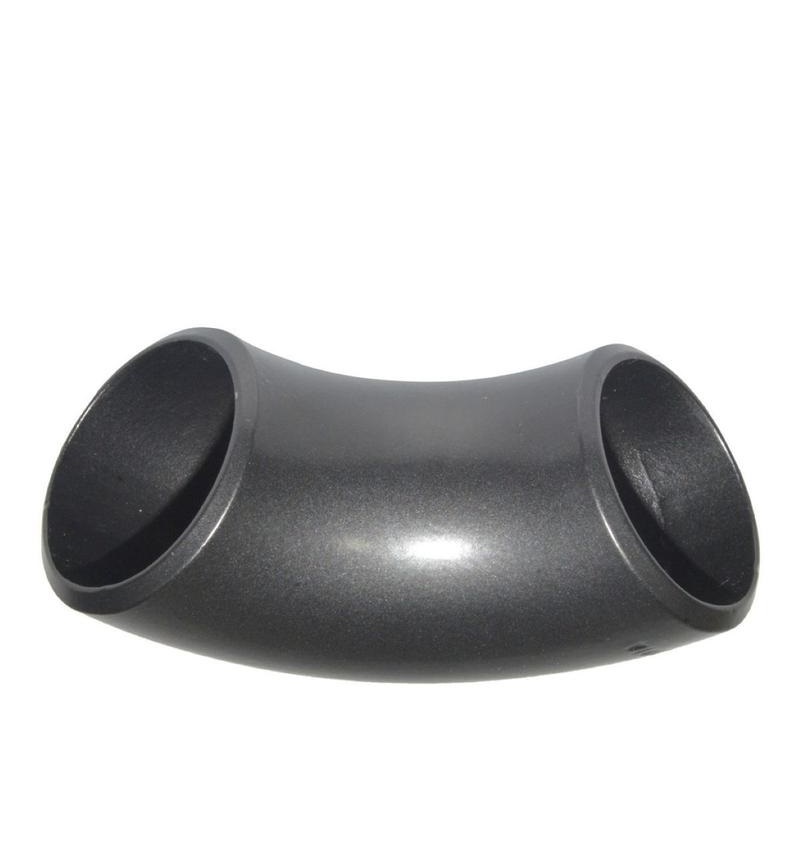

Fitwel India is manufacturer of Buttweld Fittings and supply high quality ANSI / ASME b16.9 Butt weld Long Radius Bend offer you the best prices in the market. Butt weld Long Radius Bend are tested and verified for durability, accuracy and precision. Buttweld fittings are available in Piggable Bend and Induction Bend, in radius of 3D, 5D, 6D etc. These Butt weld Long Radius Bend are available with following specifications.
Carbon Steel, Alloy Steel ASME B16.25, ANSI B19.28, MSS-SP-43 Long Radius Bend, Pipe Fittings Long Radius Bend Manufacturer & Supplier in india.
Standard - ANSI/ASME :ASTM A403 / ASME SA403, ANSI B16.9, ASME B16.25, ASME B16.28, MSS SP-43.
DIN : DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
EN : EN10253-1, EN10253-2
Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Type : Seamless / ERW / Welded / Fabricated
Size: 1/2"--60"
Form: Long Radius Bend, Induction Bend, With R=3D, 5D, 6D, 8D, 10D & Customized Bend
Stainless Steel Long Radius Bend : ASTM A403 WP316/316L, ASTM A403 WP304/304L, ASTM A182 F316L, 304L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
Carbon Steel Long Radius Bend : ASTM A234, ASME SA234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
Alloy Steel Long Radius Bend : ASTM A234, ASME SA234 WP1 / WP5 / WP9 / WP11 / WP22 / WP91
Duplex Steel Long Radius Bend : ASTM A815, ASME SA815 UNS No S31803, S32205
Super Duplex Long Radius Bend : ASTM A815, ASME SA815 UNS No S32750, S32950
Nickel Alloy Long Radius Bend : ASTM B336, ASME SB336, Nickel 200 (UNS No. No2200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II), Cupro-Nickel 70/30, CuNi10Fe1Mn, CuNi30Mn1Fe.
Low Temperature Carbon Steel Long Radius Bend : ASTM A420 WPL3, A420 WPL6
| Nominal PN (MPa) |
DN | Thread D |
Pipe Specification DH×s |
L1 | L2 | L3 (Not less than) |
L (Not less than) |
R |
| 32.0 | 175 | M240×6 | 245×36 | 120 | 130 | 360 | 1095 | 735 |
| 200 | M265×6 | 273×40 | 130 | 140 | 390 | 1209 | 819 | |
| 225 | M320×6 | 325×50 | 175 | 185 | 525 | 1500 | 975 | |
| 250 | M350×6 | 355.6×55 | 195 | 205 | 580 | 1650 | 1070 | |
| 22.0 | 175 | M215×6 | 219×24 | 100 | 110 | 300 | 957 | 657 |
| 200 | M240×6 | 245×26 | 110 | 120 | 330 | 1065 | 735 | |
| 225 | M265×6 | 273×29 | 115 | 125 | 345 | 1164 | 819 | |
| 250 | M295×6 | 299×32 | 120 | 130 | 360 | 1257 | 897 |
