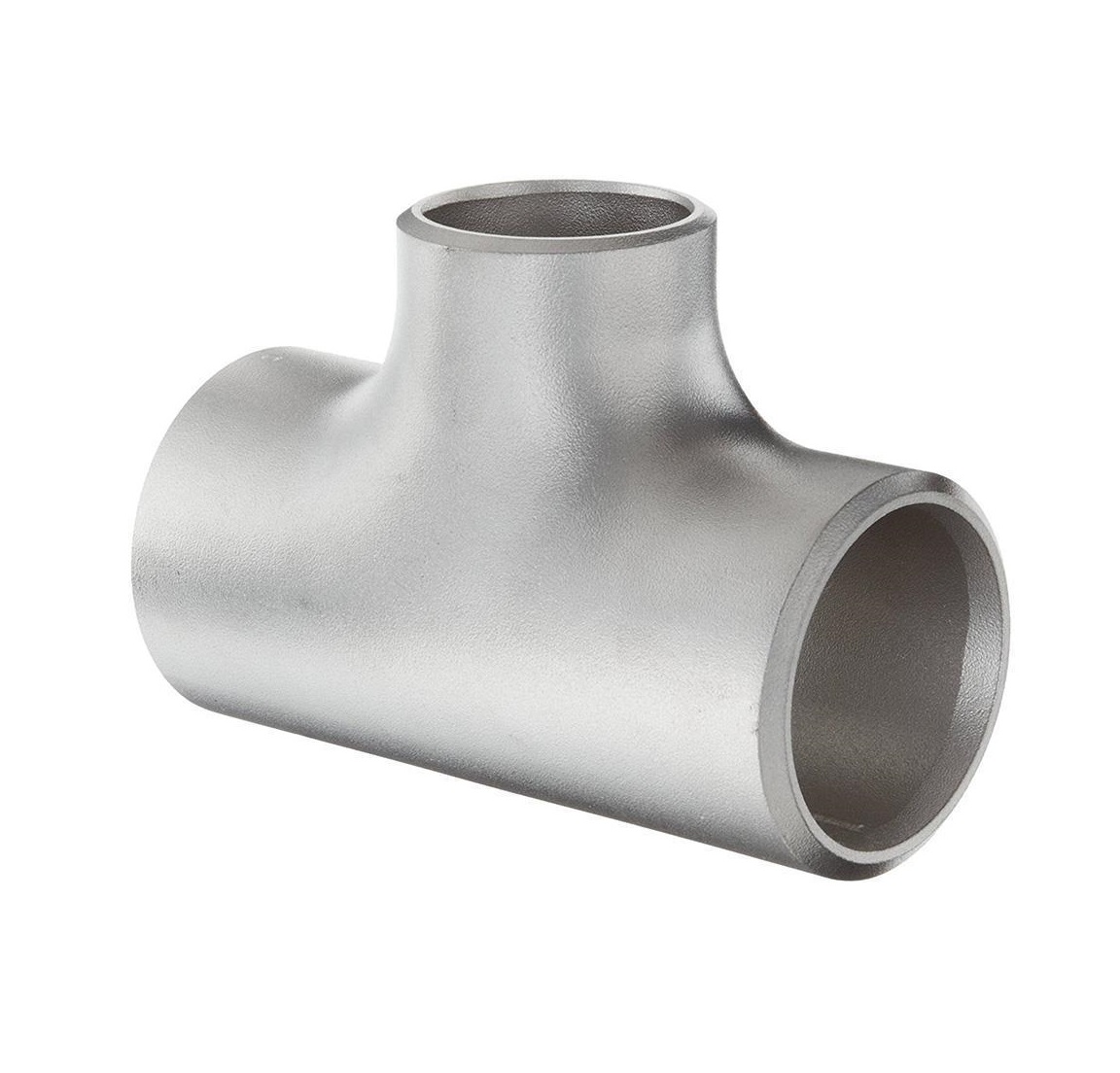

Fitwel India is one of the leading manufacturer, stockist, supplier, and exporter of Stainless Steel buttweld reducing tee. The Stainless Steel buttweld reducing tee has branch diameter is smaller than the main diameter. The Stainless Steel buttweld reducing tee is usually described as NPS diameters in 4” x 4” x 3”, where 4” is the mainline pipe diameter, and 3” is the reducing branch.
Carbon Steel, Alloy Steel ASME B16.25, ANSI B19.28, MSS-SP-43 Pipe Unequal Tee, Reducing Tee Manufacturer & Supplier in india.
Standard - ANSI/ASME :ASTM A403 / ASME SA403, ANSI B16.9, ASME B16.25, ASME B16.28, MSS SP-43.
DIN : DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
EN : EN10253-1, EN10253-2
Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Type : Seamless / ERW / Welded / Fabricated
Seamless Reducing Tee Size: 1/2"~24"
ERW / Welded / Fabricated Reducing Tee Size: 1/2" (15 NB) to 48" (1200NB)
Form: Unqual Tee, Reducing Tee
Stainless Steel Equal Tee : ASTM A403 WP316/316L, ASTM A403 WP304/304L, ASTM A182 F316L, 304L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
Carbon Steel Reducing Tee : ASTM A234, ASME SA234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
Alloy Steel Reducing Tee : ASTM A234, ASME SA234 WP1 / WP5 / WP9 / WP11 / WP22 / WP91
Duplex Steel Reducing Tee : ASTM A815, ASME SA815 UNS No S31803, S32205
Super Duplex Reducing Tee : ASTM A815, ASME SA815 UNS No S32750, S32950
Nickel Alloy Reducing Tee : ASTM B336, ASME SB336, Nickel 200 (UNS No. No2200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II)
Low Temperature Carbon Steel Reducing Tee : ASTM A420 WPL3, A420 WPL6
| Nominal Pipe Size | Outside diameter at bevel |
Center-to-End | |||
|---|---|---|---|---|---|
| Run | Outlet | Run | Outlet | Run (C) | Outlet (M) |
1/2" |
1/4" 3/8" |
21.3 |
13.7 17.3 |
25 |
25 |
3/4" |
3/8" 1/2" |
26.7 |
17.3 21.3 |
29 |
29 |
1" |
1/2" 3/4" |
33.4 |
21.3 26.7 |
38 |
38 |
1 1/4" |
1/2" 3/4" 1" |
42.2 |
21.3 26.7 33.4 |
48 |
48 |
1 1/2" |
1/2" 3/4" 1" 1 1/4" |
48.3 |
21.3 26.7 33.4 42.2 |
57 |
57 |
2" |
3/4" 1" 1 1/4" 1 1/2" |
60.3 |
26.7 33.4 42.2 48.3 |
64 |
44 51 57 60 |
2 1/2" |
1" 1 1/4" 1 1/2" 2" |
73.0 |
33.4 42.2 48.3 60.3 |
76 |
57 64 67 70 |
3" |
1 1/4" 1 1/2" 2" 2 1/2" |
88.9 |
42.2 48.3 60.3 73.0 |
86 |
70 73 76 83 |
3 1/2" |
1 1/2" 2" 2 1/2" 3" |
101.6 |
48.3 60.3 73.0 88.9 |
95 |
79 83 89 92 |
4" |
1 1/2" 2" 2 1/2" 3" 3 1/2" |
114.3 |
48.3 60.3 73.0 88.9 101.6 |
105 |
86 89 95 98 102 |
5" |
2" 2 1/2" 3" 3 1/2" 4" |
141.3 |
60.3 73.0 88.9 101.6 114.3 |
124 |
105 108 111 114 117 |
6" |
2 1/2" 3" 3 1/2" 4" 5 |
168.3 |
73.0 88.9 101.6 114.3 141.3 |
143 |
121 124 127 130 137 |
8" |
3 1/2" 4" 5" 6" |
219.1 |
101.6 114.3 141.3 168.3 |
178 |
152 156 162 168 |
10" |
4" 5" 6" 8" |
273.0 |
114.3 141.3 168.3 219.1 |
216 |
184 191 194 203 |
12" |
5" 6" 8" 10" |
323.8 |
141.3 168.3 219.1 273.0 |
254 |
216 219 229 241 |
14" |
6" 8" 10" 12" |
355.6 |
168.3 219.1 273.0 323.8 |
279 |
238 248 257 270 |
16" |
6" 8" 10" 12" 14" |
406.4 |
168.3 219.1 273.0 323.8 355.6 |
305 |
264 273 283 295 305 |
18" |
8" 10" 12" 14" 16" |
457.0 |
219.1 273.0 323.8 355.6 406.4 |
343 |
298 308 321 330 330 |
20" |
8" 10" 12" 14" 16" 18" |
508.0 |
219.1 273.0 323.8 355.6 406.4 457.0 |
381 |
324 333 346 356 356 368 |
22" |
10" 12" 14" 16" 18" 20" |
559.0 |
273.0 323.8 355.6 406.4 457.0 508.0 |
419 |
359 371 381 381 394 406 |
24" |
10" 12" 14" 16" 18" 20" 22" |
610.0 |
273.0 323.8 355.6 406.4 457.0 508.0 559.0 |
432 |
384 397 406 406 419 432 432 |
