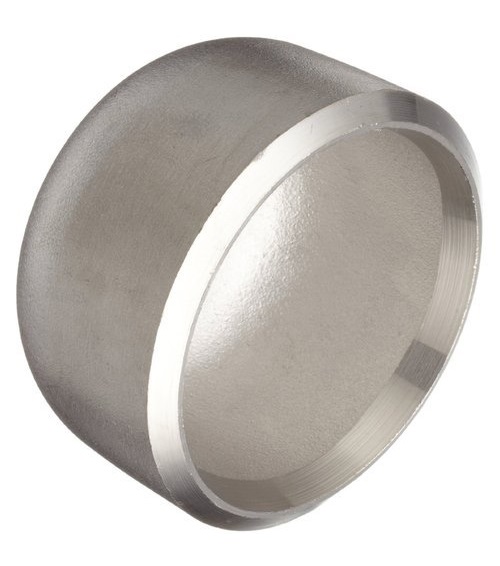

Fitwel India is one of the largest exporter, manufacturer, and supplier of stainless steel End Pipe Cap Butt Weld Pipe Fittings in India. The prime purpose of an end cap is in point of circumstance to obstruct the detailed end of a line in the piping system. And this is attained by placing Butt Weld Fittings End Cap on the open-line self-possessed by means of on the welding in the area of the point.
Carbon Steel, Alloy Steel ASME B16.25, ANSI B19.28, MSS-SP-43 End Caps, Pipe Fittings End Caps Manufacturer & Supplier in india.
Standard - ANSI/ASME :ASTM A403 / ASME SA403, ANSI B16.9, ASME B16.25, ASME B16.28, MSS SP-43.
DIN : DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
EN : EN10253-1, EN10253-2
Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Type : Seamless / ERW / Welded / Fabricated
Size: 1/2" (15 NB) to 48" (1200NB)
Form: End Caps
Stainless Steel End Cap : ASTM A403 WP316/316L, ASTM A403 WP304/304L, ASTM A182 F316L, 304L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
Carbon Steel End Cap : ASTM A234, ASME SA234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
Alloy Steel End Cap : ASTM A234, ASME SA234 WP1 / WP5 / WP9 / WP11 / WP22 / WP91
Duplex Steel End Cap : ASTM A815, ASME SA815 UNS No S31803, S32205
Super Duplex End Cap : ASTM A815, ASME SA815 UNS No S32750, S32950
Nickel Alloy End Cap : ASTM B336, ASME SB336, Nickel 200 (UNS No. No2200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II), Cupro-Nickel 70/30, CuNi10Fe1Mn, CuNi30Mn1Fe.
Low Temperature Carbon Steel End Cap : ASTM A420 WPL3, A420 WPL6
| inches | mm | Height | |
| D | E | ||
| 1/2 | 15 | 21,34 | 25,40 |
| 3/4 | 20 | 26,67 | 31,75 |
| 1" | 25 | 33,40 | 38,10 |
| 1 1/4 | 32 | 42,16 | 38,10 |
| 1 1/2 | 40 | 48,26 | 38,10 |
| 2 | 50 | 60,32 | 38,10 |
| 2 1/2 | 65 | 73,02 | 38,10 |
| 3 | 80 | 88,90 | 50,80 |
| 3 1/2 | 90 | 101,60 | 63,50 |
| 4 | 100 | 114,30 | 63,50 |
| 5 | 125 | 141,30 | 76,20 |
| 6 | 150 | 168,27 | 88,90 |
| 8 | 200 | 219,07 | 101,60 |
| 10 | 250 | 273,05 | 127,00 |
| 12 | 300 | 323,85 | 152,40 |
| 14 | 350 | 355,60 | 165,10 |
| 16 | 400 | 406,40 | 177,80 |
| 18 | 450 | 457,20 | 203,20 |
| 20 | 500 | 508,00 | 228,60 |
| 22 | 550 | 558,80 | 254,00 |
| 24 | 600 | 609,60 | 266,70 |
| 28 | 700 | 711,20 | 266,70 |
| Dimension in mm | |||
| DIMENSIONAL TOLERANCES - CAPS | ||||
| For all fittings | Caps | |||
| Nominal Pipe Size (NPS) | Outside Ø at Bevel | Inside Ø at End | Wall Thickness t / t1 |
Overall Length E |
| 1/2 a 2 1/2 | 1 | 0,8 | Not | 4 |
| 3 a 3 1/2 | 1 | 1,6 | less | 4 |
| 4 | +2 -1 | 1,6 | than | 4 |
| 5 a 6 | +3 -1 | 1,6 | 87,50% | 7 |
| 8 | 2 | 1,6 | of nominal | 7 |
| 10 | +4 -3 | 3,2 | tickness | 7 |
| 12 a 18 | +4-3 | 3,2 | 7 | |
| 20 a 24 | +6-5 | 4,8 | 7 | |
| 26 a 30 | +7 -5 | 4,8 | 10 | |
| 32 a 48 | +7 -5 | 4,8 | 10 | |
| WEIGHTS OF FITTINGS | ||||
| NPS inches |
CAPS | |||
| Sch. 5S |
Sch. 10S |
Sch. 40S |
Sch. 80S |
|
| 1/2 | 0.04 | 0.04 | 0.05 | 0.05 |
| 3/4 | 0.05 | 0.05 | 0.06 | 0.08 |
| 1 | 0.09 | 0.09 | 0.13 | 0.17 |
| 1 1/4 | 0.11 | 0.11 | 0.15 | 0.18 |
| 1 1/2 | 0.15 | 0.15 | 0.20 | 0.22 |
| 2 | 0.17 | 0.17 | 0.25 | 0.30 |
| 2 1/2 | 0.25 | 0.25 | 0.45 | 0.50 |
| 3 | 0.40 | 0.40 | 0.70 | 0.90 |
| 4 | 0.60 | 0.60 | 1.20 | 1.60 |
| 5 | 1.00 | 1.00 | 1.90 | 2.70 |
| 6 | 1.40 | 1.40 | 2.90 | 4.30 |
| 8 | 2.50 | 2.50 | 5.10 | 7.60 |
| 10 | 3.90 | 3.90 | 9.00 | 12.0 |
| 12 | 6.50 | 6.50 | 13.5 | 17.5 |
| 14 | 8.00 | 8.00 | 16.0 | 20.5 |
| 16 | 14.5 | 14.5 | 20.5 | 26.0 |
| 18 | 17.0 | 17.0 | 26.0 | 34.0 |
| 20 | 18.0 | 18.0 | 32.0 | 43.0 |
| 24 | 26.0 | 26.0 | 46.0 | 60.0 |
| Approximate weights in kg, density 8 kg/dm3 | ||||
