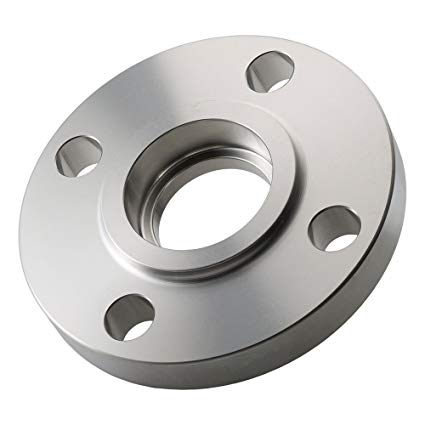

SOCKET WELD FLANGES

Socket Weld Flanges are used only for high pressure and temperature applications upto diameters of 1 ½” only. This creates a smooth bore with the proper welding and grinding. Socket Welding Flanges were initially developed for use on smaller sizes of pipe at higher pressure ratings.

SOCKET WELDING FLANGES SPECIFICATION :

Standard - ANSI/ASME : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48

DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673

B.S : BS4504, BS4504, BS1560, BS10

Size : 1/2" (15 NB) to 48" (1200NB)

Class : 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.

Specialize :As per drawing



SOCKET WELD FLANGES MATERIAL & GRADES :

Stainless Steel Socket Weld Flanges : ASTM A182, A240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H, 904L

Carbon Steel Socket Weld Flanges : ASTM / ASME A/SA 105 ASTM / ASME A 350 , ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42, F46, F52, F60, F65, F70

Alloy Steel Socket Weld Flanges : ASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F12, F22, F91

Duplex Steel Socket Weld Flanges : ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61

Super Duplex Socket Weld Flanges : ASTM / ASME A/SA 182, A240 F 44, F 45, F51, F 53, F 55, F 60, F 61

Nickel Alloy Socket Weld Flanges : Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II)

Copper Alloy Socket Weld Flanges : UNS No. C10100, 10200, 10300, 10800, 12000, 12200, 70600, 71500, UNS No. C 70600 (Cu -Ni- 90/10), C 71500 (Cu-Ni-70/30)

Low Temperature Carbon Steel Socket Weld Flanges : ASTM A350, LF2, LF3

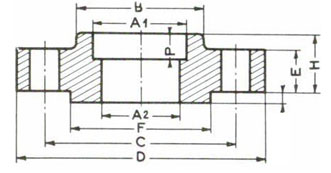

Socket Weld Flanges Dimensions

socket welding flanges dimensions

150 Class Socket Weld Flanges :

Drilling
Nominal Bore Dia.
(D)		 Thick.
(E)		 Dia.
(F)		 Dia.
(B)		 Dia.
(A)		 Height1
(H)		 Nbr Holes Dia.
(C)
1/2"
90
11.2
35.05
30
22.2
14
4
15.87
60.3
3/4"
100
12.7
42.92
38
27.7
14
4
15.87
69.9
1"
110
14.3
50.80
49
34.5
16
4
15.87
79.4
1 1/4"
115
15.9
63.50
59
43.2
19
4
15.87
88.9
1 1/2"
125
17.5
73.15
65
49.5
21
4
15.87
98.4
2"
150
19.1
91.94
78
61.9
24
4
19.05
120.7
2 1/2"
180
22.3
104.65
90
74.6
27
4
19.05
139.7
3"
190
23.9
127.00
108
90.7
29
4
19.05
152.4
1,6mm raised face not included in the E & H dimensions

300 Class Socket weld Flanges :

Drilling
Nominal Bore Dia.
(D)		 Thick.
(E)		 Dia.
(F)		 Dia.
(B)		 Dia.
(A)		 Height1
(H)		 Nbr Holes Dia.
(C)
1/2"
95
12.7
35.05
38
22.2
21
4
15.87
66.7
3/4"
115
14.3
42.92
48
27.7
24
4
19.05
82.6
1"
125
15.9
50.80
54
34.5
25
4
19.05
88.9
1 1/4"
135
17.5
63.50
64
43.2
25
4
19.05
98.4
1 1/2"
155
19.1
73.15
70
49.5
29
4
22.22
114.3
2"
165
20.7
91.94
84
61.9
32
8
19.05
127.0
2 1/2"
190
23.9
104.65
100
74.6
37
8
22.22
149.2
3"
210
27.0
127.00
117
90.7
41
8
22.22
168.3
1,6mm raised face not included in the E & H dimensions

600 Class Socket Weld Flanges :

Drilling
Nominal Bore >Dia.
(D)		 Thick.
(E)		 Dia.
(F)		 Dia.
(B)		 Dia.
(A)		 Height1
(H)		 Nbr Holes Dia.
(C)
1/2"
95
14.3
35.05
38
22.2
22
4
15.87
66.7
3/4"
115
15.9
42.92
48
27.7
25
4
19.05
82.6
1"
125
17.5
50.80
54
34.5
27
4
19.05
88.9
1 1/4"
135
20.7
63.50
64
43.2
29
4
19.05
98.4
1 1/2"
155
22.3
73.15
70
49.5
32
4
22.22
114.3
2"
165
25.4
91.94
84
61.9
37
8
19.05
127.0
2 1/2"
190
28.6
104.65
100
74.6
41
8
22.22
149.2
3"
210
31.8
127.00
117
90.7
46
8
22.22
168.3
6,4 raised face not included in the E & H dimensions
