SLIP-ON FLANGES

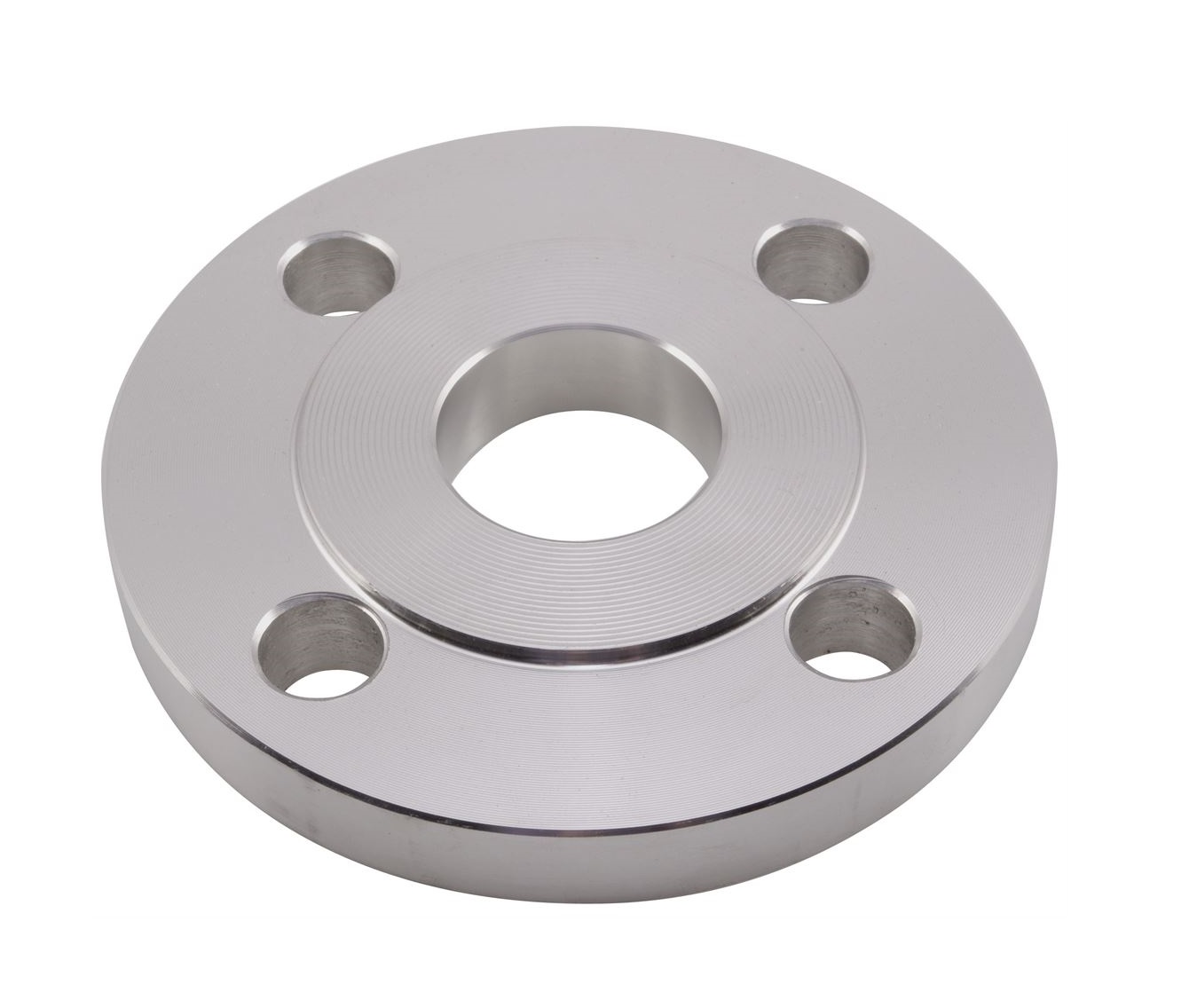

High quality stainless slip on flanges, steel slip on flanges, ss slip on flanges are ideal for lower pressure applications. Welding reduces fabrication costs of these pipes. These are available in wide variety of sizes and applications. Slip-on flanges are a popular type of pipe flanges. These flanges are typically provided with a raised or flat face. The flange bolt holes are aligned and the flange face squared to the pipe. Slip on Flange available in sizes from 1/4” through to any size.

Fitwel India LLP are Manufacturer & Supplier of Standard ANSI, ASME, DIN Slip On Flanges in India, Maharashtra, Mumbai. GGS Supply & Exporters of ANSI B16.5 stainless steel slip on pipe flanges, carbon steel slip on flanges, ASTM A105 alloy steel slip on flanges, high nickel alloy 400 class SORF flanges, monel slip on pipe flanges, BS 4504 PN 16 inconel slip on flanges, ASME B16.47 hastelloy slip on pipe flanges, alloy 20 slip on flanges in india. Slip on flanges are available in 150 class slip on flanges, 300 class SORF Flange, 400 class slip on pipe flange, 600 class SORF Flanges, 900 class slip on flanges, 1500 class SORF Flanges, 2500 class slip on flanges.

SLIP ON FLANGES SPECIFICATION :

Standard - ANSI/ASME : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48

DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673

B.S : BS4504, BS4504, BS1560, BS10

Size : 1/2" (15 NB) to 48" (1200NB)

Class : 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.

Specialize :As per drawing



SLIP ON PIPE FLANGES MATERIAL & GRADES :

Stainless Steel Slip on Flanges : ASTM A182, A240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H, 904L

Carbon Steel Slip on Flanges : ASTM / ASME A/SA 105 ASTM / ASME A 350 , ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42, F46, F52, F60, F65, F70

Alloy Steel Slip on Flanges : ASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F12, F22, F91

Duplex Steel Slip on Flanges : ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61

Super Duplex Slip on Flanges : ASTM / ASME A/SA 182, A240 F 44, F 45, F51, F 53, F 55, F 60, F 61

Nickel Alloy Slip on Flanges :Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II)

Copper Alloy Slip On Flanges : UNS No. C10100, 10200, 10300, 10800, 12000, 12200, 70600, 71500, UNS No. C 70600 (Cu -Ni- 90/10), C 71500 (Cu-Ni-70/30)

Low Temperature Carbon Steel Slip on Flanges : ASTM A350, LF2, LF3


Slip on Flanges Dimensions

slip on flanges dimensions

150 Class Slip on Flanges :

Drilling
Nominal Bore Dia.
(D)		 Thick.
(E)		 Dia.
(F)		 Dia.
(B)		 Dia.
(A)		 Height1
(H)		 Nbr Holes Dia.
(C)
1/2" 90 9.6 35.05 30 22.2 14 4 15.87 60.3
3/4" 100 11.2 42.93 38 27.7 14 4 15.87 69.9
1" 110 12.7 50.80 49 34.5 16 4 15.87 79.4
1 1/4" 115 14.3 63.50 59 43.2 19 4 15.87 88.9
1 1/2" 125 15.9 73.15 65 49.5 21 4 15.87 98.4
2" 150 17.5 91.95 78 61.9 24 4 19.05 120.7
2 1/2" 180 20.7 104.65 90 74.6 27 4 19.05 139.7
3" 190 22.3 127.00 108 90.7 29 4 19.05 152.4
3 1/2" 215 22.3 139.70 122 103.4 30 8 19.05 177.8
4" 230 22.3 157.22 135 116.1 32 8 19.05 190.5
5" 255 22.3 185.67 164 143.8 35 8 22.22 215.9
6" 280 23.9 215.90 192 170.7 38 8 22.22 241.3
8" 345 27.0 269.75 246 221.5 43 8 22.22 298.5
10" 405 28.6 323.85 305 276.2 48 12 25.40 362.0
12" 485 30.2 381.00 365 327.0 54 12 25.40 431.8
14" 535 33.4 412.75 400 359.2 56 12 28.57 476.3
16" 595 35.0 469.90 457 410.5 62 16 28.57 539.8
18" 635 38.1 533.40 505 461.8 67 16 31.75 577.9
20" 700 41.3 584.20 559 513.1 71 20 31.75 635.0
24" 815 46.1 692.15 663 616.0 81 20 34.92 749.3
1,6mm raised face not included in the E & H dimensions

300 Class Slip on Flanges :

Nominal Bore Dia.
(D)		 Thick.
(E)		 Dia.
(F)		 Dia.
(B)		 Dia.
(A)		 Height1
(H)		 Nbr Holes Dia.
(C)
1/2" 21.3 12.7 35.05 38 22.2 21 4 15.87 66.7
3/4" 26.7 14.3 42.93 48 27.7 24 4 19.05 82.6
1" 33.4 15.9 50.80 54 34.5 25 4 19.05 88.9
1 1/4" 42.2 17.5 63.50 64 43.2 25 4 19.05 98.4
1 1/2" 48.3 19.1 73.15 70 49.5 29 4 22.22 114.3
2" 60.3 20.7 91.95 84 61.9 32 8 19.05 127.0
2 1/2" 73.0 23.9 104.65 100 74.6 37 8 22.22 149.2
3" 88.9 27.0 127.00 117 90.7 41 8 22.22 168.3
3 1/2" 101.6 28.6 139.70 133 103.4 43 8 22.22 184.2
4" 114.3 30.2 157.22 146 116.1 46 8 22.22 200.0
5" 141.3 33.4 185.67 178 143.8 49 8 22.22 235.0
6" 168.3 35.0 215.90 206 170.7 51 12 22.22 269.9
8" 219.1 39.7 269.75 260 221.5 60 12 25.40 330.2
10" 273.0 46.1 323.85 321 276.2 65 16 28.57 387.4
12" 323.8 49.3 381.00 375 327.0 71 16 31.75 450.8
14" 355.6 52.4 412.75 425 359.2 75 20 31.75 514.4
16" 406.4 55.6 469.90 483 410.5 81 20 34.92 571.5
18" 457.0 58.8 533.40 533 461.8 87 24 34.92 628.6
20" 508.0 62.0 584.2td> 587 513.1 94 24 34.92 685.8
24" 610.0 68.3 692.15 702 616.0 105 24 41.27 812.8
1,6mm raised face not included in the E & H dimensions

600 Class Slip on Flanges :

Drilling
Nominal Bore Dia.
(D)		 Thick.
(E)		 Dia.
(F)		 Dia.
(B)		 Dia.
(A)		 Height1
(H)		 Nbr Holes Dia.
(C)
1/2" 21.3 14.3 35.05 38 22.2 22 4 15.87 66.7
3/4" 26.7 15.9 42.93 48 27.7 25 4 19.05 82.6
1" 33.4 17.5 50.80 54 34.5 27 4 19.05 88.9
1 1/4" 42.2 20.7 63.50 64 43.2 29 4 19.05 98.4
1 1/2" 48.3 22.3 73.15 70 49.5 32 4 22.22 114.3
2" 60.3 25.4 91.95 84 61.9 37 8 19.05 127.0
2 1/2" 73.0 28.6 104.65 100 74.6 41 8 22.22 149.2
3" 88.9 31.8 127.00 117 90.7 46 8 22.22 168.3
3 1/2" 101.6 35.0 139.70 133 103.4 49 8 25.40 184.2
4" 114.3 38.1 157.22 152 116.1 54 8 25.40 215.9
5" 141.3 44.5 185.67 189 143.8 60 8 28.57 266.7
6" 168.3 47.7 215.90 222 170.7 67 12 28.57 292.1
8" 219.1 55.6 269.75 273 221.5 76 12 31.75 349.2
10" 273.0 63.5 325.85 343 276.2 86 16 34.92 431.8
12" 323.8 66.7 381.00 400 327.0 92 20 34.92 489.0
14" 355.6 69.9 412.75 432 359.2 94 20 38.10 527.0
16" 406.4 76.2 469.90 495 410.5 106 20 41.27 603.2
18" 457.0 82.6 533.40 546 461.8 117 20 44.45 654.0
20" 508.0 88.9 584.20 610 513.1 127 24 44.45 723.9
24" 610.0 101.6 692.15 718 616.0 140 24 50.80 838.2
6,4 raised face not included in the E & H dimensions
